Hybrid Fence for Solar Power Plant

Why Solar Power Plants Need Boundary Fencing

Solar farms are high-value infrastructure projects that require robust protection. The installation of a secure boundary fence is not just a precaution—it’s a necessity. Here’s why:

Security and Asset Protection

• Solar farms house expensive components such as photovoltaic panels, inverters, and copper wiring.

• Theft and vandalism are growing concerns, especially in remote or unmonitored locations.

• A well-designed fence acts as a physical and psychological barrier, deterring unauthorized access and criminal activity.

 Safety for Humans and Wildlife

• High-voltage equipment poses serious safety risks to people, livestock, and wildlife.

• Fencing prevents accidental contact and ensures the safety of nearby communities and ecosystems.

Key Criteria for an Ideal Boundary Fence

To ensure long-term protection and performance, the boundary fence should meet the following standards:

1. Durability

   • Solar power plants are built for a minimum lifespan of 25 years.

   • The fencing must be corrosion-resistant, weatherproof, and require minimal maintenance.

2. Strength

   • Remote locations often face threats from wild animals and harsh environmental conditions.

   • The fence should be robust enough to withstand physical impact and intrusion attempts.

3. Psychological Deterrence

   • The presence of a tall, reinforced fence with barbed wire or electric deterrents sends a clear message: “Keep Out.”

   • This helps prevent both intentional breaches and accidental trespassing.

4. Height

   • Recommended height: 6 to 8 feet (1.8 to 2.4 meters).

   • Taller fences enhance both security and visibility for surveillance systems.

KFS Hybrid Boundary Fencing Solutions for Solar Power Plants

KFS offers specialized hybrid fencing systems engineered to safeguard solar power plants from theft, wildlife intrusion, and environmental exposure. These models combine chain-link fencing with barbed or electric wire deterrents, supported by high-strength galvanized steel structures for long-term durability.

Model 1: Hybrid Boundary Fence – 6 Feet

Specifications:

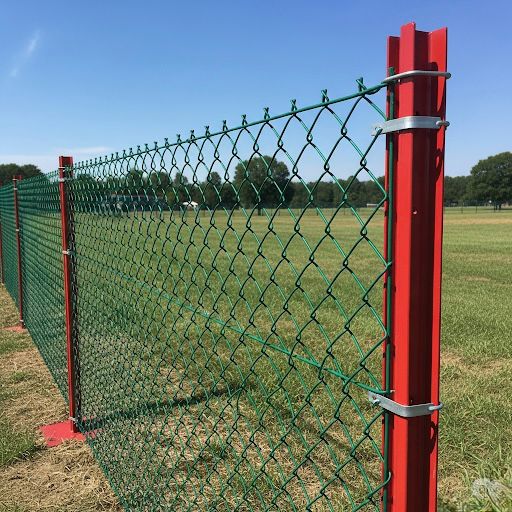

• Chain-Link Fence Height: 5 feet

• Material Options:

  • GI Wire (Galvanized Iron)

  • PVC-Coated GI Wire (recommended for enhanced corrosion resistance and longevity)

• Top Layer: 2 strands of either:

  • Barbed Wire (GI) or

  • Electric Wire (SS304 Stainless Steel)

• Total Fence Height: 6 feet

• Support Structure:

  • GI Angles with:

    • Coating: ≥ 500 gsm

    • Dimensions: 60 × 60 mm width, 5 mm thickness

    • Total Post Height: 9 feet

Recommended Use: Ideal for solar power plants in standard environments, offering reliable protection and compliance with minimum boundary height standards.

Model 2: “L” Shape Hybrid Fence – 7.5 Feet

Specifications:

• Chain-Link Fence Height: 6 feet

• Material Options:

  • GI Wire

  • PVC-Coated GI Wire (recommended for long-term durability)

• Top Layer: 3 strands of either:

  • Barbed Wire (GI) or

  • Electric Wire (SS304)

• L-Bend Extension: 1.5 feet angled outward for enhanced deterrence

• Total Fence Height: 7.5 feet above ground

• Support Structure:

  • GI Angles with:

    • Coating: ≥ 500 gsm

    • Dimensions: 60 × 60 mm width, 5 mm thickness

    • Total Post Height: 10.5 feet

Recommended Use: Best suited for remote or high-risk locations, this model provides superior protection against intrusion, wildlife, and environmental stress.

Key Benefits

• Durability: Designed for a maximum operational life as per requirement of Solar Power  Plants.

• Strength: Withstands harsh conditions and deters wildlife

• Security: Provides both physical and psychological deterrence

• Compliance: As per the requirement of Solar Power Plant perimeter security. Customization options is also available.

The hybrid boundary fence models designed by KFS  ensures maximum protection, minimal maintenance, and long-term reliability—perfectly aligned with the operational goals of modern solar power plants.

Note: For solar power plants L Shape Hybrid Boundary 7.5 feet with PVC Chain-link fence + 3 Electric Wire is recommended for durability and better security protection.

 For solar power plant boundary connect KFS which provides custom based boundary solutions which suits your requirements at affordable prices.
